2D-Scanner
If you are looking for an affordable entry-level solution to getting started in digital foot measuring - our 2D-Scanner is the right choice for you.
Our ped2D is an inexpensive entry-level variant in digital foot measurement. With this 2D scanner you can create two-dimensional, static, digital measurements and process them directly in the pedoffice Lite software supplied.
Optionally, we also offer you an upgrade to our powerful pedoffice full version. The full version of the ⇢ pedoffice software is our integrated management software for processing customer data, insert types and materials. All measurement data obtained by you with the 2D scanner can be processed here intuitively. In this way you increase your presence and competence with the customer and receive a significant time advantage in production.
2D scanner with pedoffice Lite software.
Specifications:
- measure both feet at once
- digital static measurement
- low cost entry to digital measurement
- for mobile use or in a measurement chair
Technical specifications
- operating system: Win7/Win8/Win8.1/Win10
- AC/DC: 100-240 V /50-60 Hz
- Connector: USB 2.0
- Dimensions: 631 mm x 429 mm x 110 mm
- Weight: 12 kg
- Scan size: DIN A3
pedoffice software
Thanks to our ⇢ pedoffice software, there are various display options for the measurement result. In this way, the measurement result can be displayed overlaid with the desired insert. It is also possible to compare current and past measurements. This simplifies the control of the success of the treatment. Of course, all of our measuring systems can also be combined with one another. In our insole construction software ⇢ InsoleDesigner, several measurements can also be superimposed in order to use the optimum of all measurement types. You can also order our ⇢ VALINOS® using the pedoffice software.

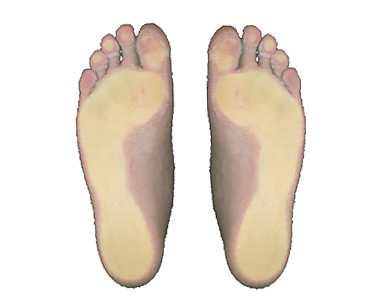

example of 2D-measurement

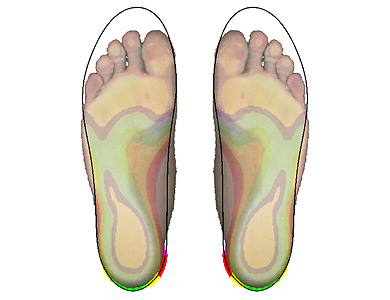

2D-measurement and selected insole shown overlapped
